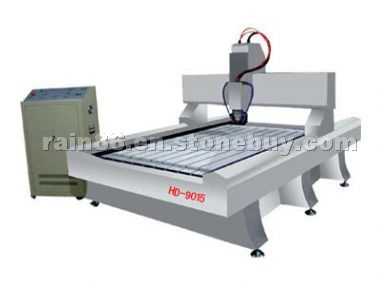

Marble/Granite CNC Engraver

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1426389

• Place of Origin:

  China
• Marble/Granite CNC Engraver
  High speed driver
  High precision
  High power
  Marble/Granite CNC Engraver Features:
  Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high, No dust oiling structure, guarantee the long term running of the mechanical aspect.
  Germany double nuts automatic ball screw.
  High power. Can process hard materials efficiently and engrave at any place as you like.
  Well compatibility. Such as CAD/CAM/Type3/artcam/castmate/proe/Corelerow/Artcut.
  Marble/Granite CNC Engraver Configuration:
  Whole steel structure, Bearing heavy, three axis imported square orbits,
  Imported ball screw, three axis dust proof, water proof, 3. 3.0kw (high power frequency changing water cooling)
  Taiwan made inverters, fully shielded, uneasy distorted cable, 5.U flash disk DSP control system, wentai software, type3 software,
  Marble/Granite CNC Engraver Technical Parameters:
  X Y Z Working area:900*1500*200mm
  Highest running speed:5m/min
  Highest engraving speed:3m/min
  Max feeding height:150mm
  Precision:0.005mm
  Rotate speed of the spindle:0-24000rpm/min
  Working model:Stepper
  In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting machines and so on.
  we can make carving machines with all specifications to meet
